LA2

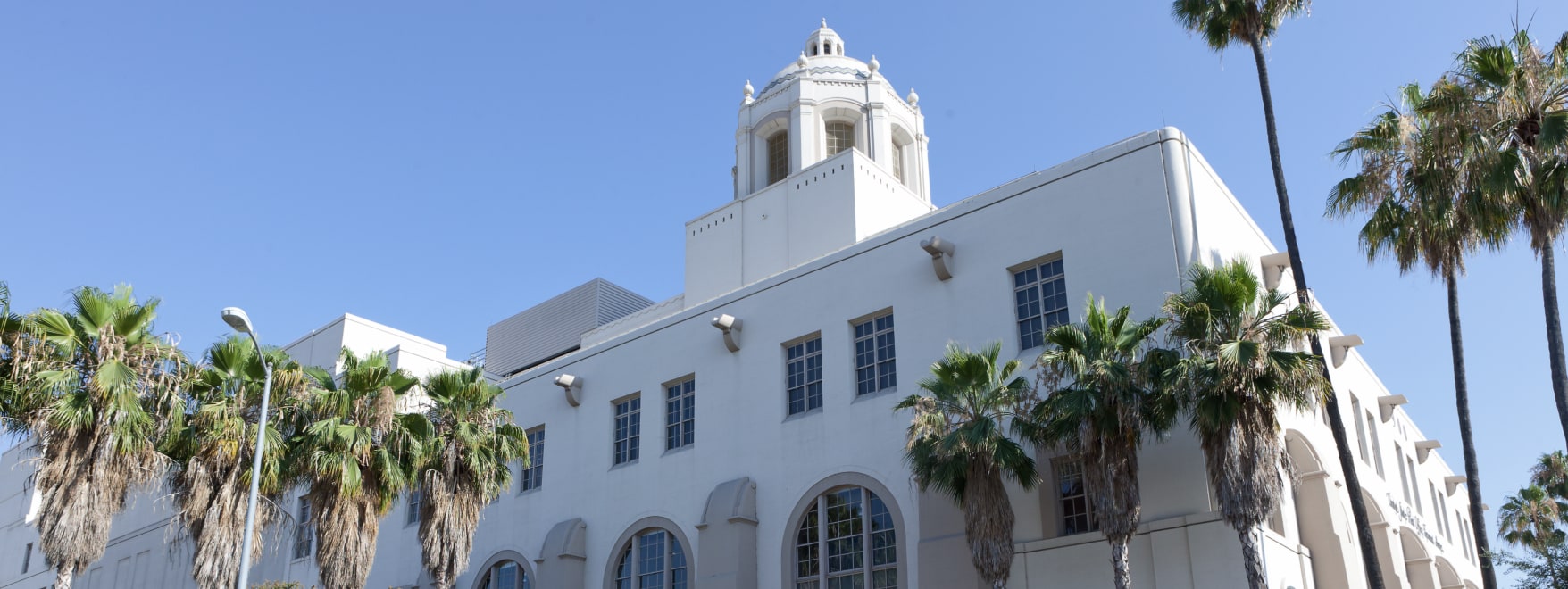

CoreSite’s LA2 data center provides unmatched scalability and connectivity within the Los Angeles market. Designed to support high-density, high-scalability requirements and tethered via high-count dark fiber to CoreSite’s LA1 (One Wilshire) data center, LA2 offers customers a global gateway with access to hundreds of cloud, network and IT providers needed to build a holistic hybrid IT solution.
-
FACILITY SIZE
424,000+ total sq. ft.DEPLOYMENTS
Partial cabinets, full cabinets, cages, private suites and build-to-suitROOFTOP
Space availablePOWER AVAILABILITY
AC and DCFIT OUT
Powered shell, infrastructure shell and turn-key -
PEERING EXCHANGES
CLOUD ACCESS
The CoreSite Open Cloud Exchange®, AWS Direct Connect and Microsoft Azure ExpressRoute and Google Cloud Platform, IBM Cloud Direct Link, and Oracle FastConnectDIVERSITY
Diverse POEs, MDFs and IDFsCROSS CONNECTS
Fiber, copper and coaxialCARRIER AVAILABILITY
See our carrier list -
ACCESS
Key cards and biometric scannersENTRIES
MantrapCAMERAS
Perimeter and interior IP-DVRPERIMETER
8' perimeter fence and controlled site accessSECURITY OFFICERS
24x7x365 in-house and on-site security qualified personnel -
UTILITIES
Diverse utility feedsUPS/PDU/RPP
N+1 redundancyGENERATORS
N+1 redundancyMECHANICAL
N+1 mechanical systemsREMOTE HANDS
24x7x365BMS CONTROLS
State-of-the-art mission-critical controls and monitoringUPTIME
100% uptime SLAFLOOD PLAIN
Systems above 500-year flood plainFUEL STORAGE
24 hours, on-site -
FLOOR LOADING
300 lbs/sq. ftCLEAR HEIGHT
10' above 36" raised floorCOLUMN SPACING
28' x 28'LOADING DOCK
Exterior 4' dock-high with levelers and a liftELEVATORS
Passenger: 6'6"w x 5'd x 7'6"h (6,000 lbs.), Large Freight: 5'6"w x 16'd x 8'2"h (10,000 lbs.), Small Freight: 5'6"w x 10'd x 8'2"h (5,000 lbs.) -
WORK SPACE
Rentable office space and conference roomsTECH LOUNGE
24x7x365 tech lounge with kitchen, televisions and couchesPARKING
Secure on-site parking -
POWER UTILITY
Power delivered from utility at high voltage to achieve rate reduction and distribution efficienciesELECTRICAL
High-efficiency UPS systemsCOOLING
Variable speed CRAHs and steam canister humidificationCHILLER
Centralized N+1 chiller system with evaporative cooling towers utilizing a water-side economizer designLIFE SAFETY
Dual-interlock pre-action dry-pipe sprinkler system with VESDALIGHTING
Lutron Eco-System lightingMONITORING
RF Code readers for pin-point accuracy of temperature and humidity within customer deployments -
